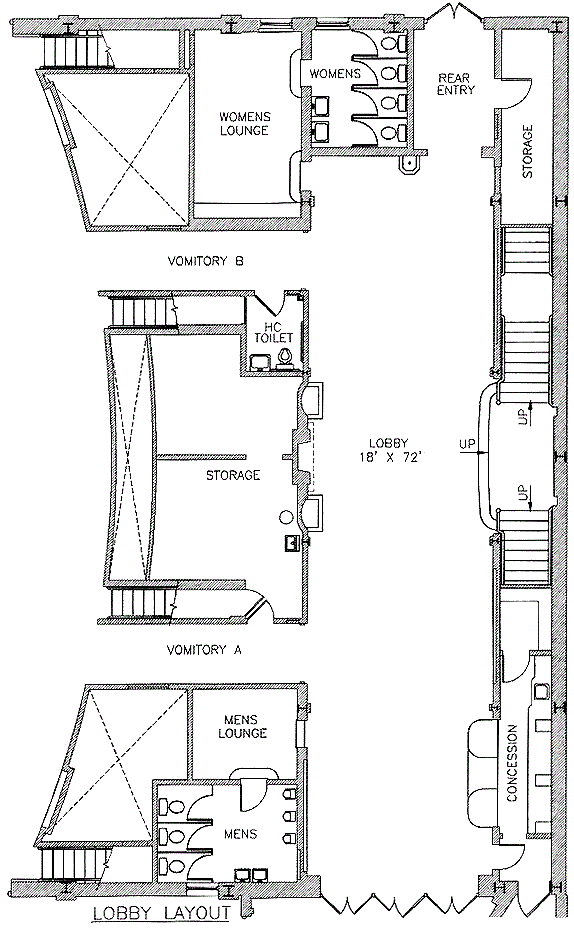

| Seating | ||
|---|---|---|
| Orchestra | Balcony | |
| Left | 182 | 163 |
| Center | 224 | 173 |
| Right | 183 | 163 |
| Wheel Chair | 10+/- | |
| Total | 1088 |
| Measurements | |
|---|---|
| Main Hall | 85’ x 107’ |
| Proscenium to last row in Orchestra | 66’ |
| Proscenium to last row in Balcony | 107’ |
| Proscenium to Projection Booth | 108’ |
| Stage Measurements | |
|---|---|
| Proscenium: | 38’ x 26’ |
| Stage Depth: | 25’ |
| Wings: | left 12’: right 9’ |
| Grid: | 51’ above stage |
| Orchestra Pit: | 38’ x 8’ |
| Loading |
|---|
| Stage left – double door, 5’10” wide x 6’-10” high (clear), 18” above pavement. |
| Stage right – single, 2’-10” wide x 7’-0” high (clear), 2” above pavemet |
| Stage rear – single door, 2’-10” wide x 7’-0” high (clear), 12” above pavement |
| Stage Rigging |
|---|
| 32 Line Sets (tee bar w/ counter weights) |
| Lines 1 – 19 single purchase |
| Lines 20 – 28 double purchase |
| Lines 29 – 32 single purchase |
| Refer to drawing for layout and reserved line sets |
| Stage Curtains |
|---|
| Main Curtain – traverse type |
| Act Curtain – guillotine type |
| Rear Curtain – black 40’ x 25’ – guillotine type (moveable) |
| Legs & Borders – 3 sets black (moveable) |
| Cyclorama – 40’ x 24’(moveable) |
| Dressing Rooms |
|---|
| 2 Star Dressing Rooms 15’ x 10’ w/ restroom & shower |
| 1 Room 29’x 16’ |
| 1 Room 27’ x 16’ |
| 1 Room 17' x 19' |
| FOH Sound System | |
|---|---|
FOH Amplifiers
FOH Loudspeakers
FOH
|
4 - CROWN - 4X3500HD (VTX-A8) 2 - CROWN IT 12000 (SUBS B-18 FLOWN / B-28 DECK) 1 - CROWN IT 9000 (FILLS) AC-16
2 - B-18'S (FLOWN / A SIDE) / 2 - B-28'S (DECK) 10 - A-8'S (FLOWN / A SIDE) 6 - AC-16'S (FILLS)
Allen & Heath dLive S7000 DM64 4 - DX168 Stage Boxes |
Stage Monitors |
A&H dLive C-3500 3 - CROWN - 4x3500HD 10 - JBL M20 Wedges 2 - JBL EON10 G2 (powered) 5 - QSC K12 3 - QSC 15 1 - QSC K-Sub |
Microphones |
5 – Shure SM-58 1 - Shure Beta 57 6 - Shure SM-57 10 - Senheiser EW312 - lavs - wireless 32 Channels Shure QLXD wireless lavs 2 QLXD2/KSM9 5 QLXD2/SM58 |
CD Player
Snake
|
Numark CDN25
48 channel plus 8 sends (stage to sound board)
8 - DI boxes |

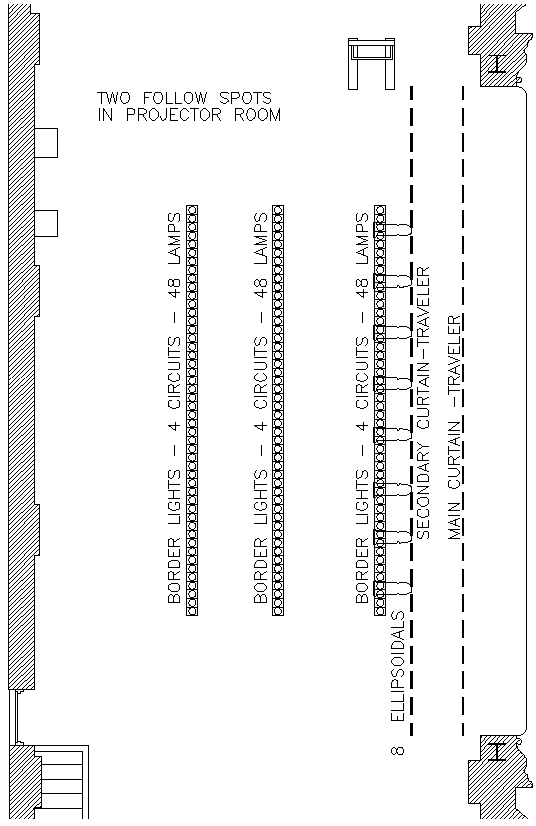

| Lighting | |
|---|---|
Control Panel: |
ETC ION Xe 20 |
Power: |
1- 200 amp panel (down stage left) |
Dimmers: |
2 – Leprecon VX-1200 |
Fixtures: |
21 Elation Six Par 300 |
| Stage Power |
|---|
| 1 - 600amp – 3 phase – 120/240 volt (upstage-left) |
| 1 – 200 amp - 3 phase - 120/240 volt (downstage-left |
| Projection Equipment | |
|---|---|
| Projector | Eike EK-1000lu w/ EIKI EK-AH-EC21030 lens (1.46 - 2.95 manual zoom) |
| Communication | |
|---|---|
| Production Intercom | 1 - MS-200 Master Station (two channel) 6 – BP-2, two channel beltpack 6 – SMH910 Single Muff reversible headsets |
